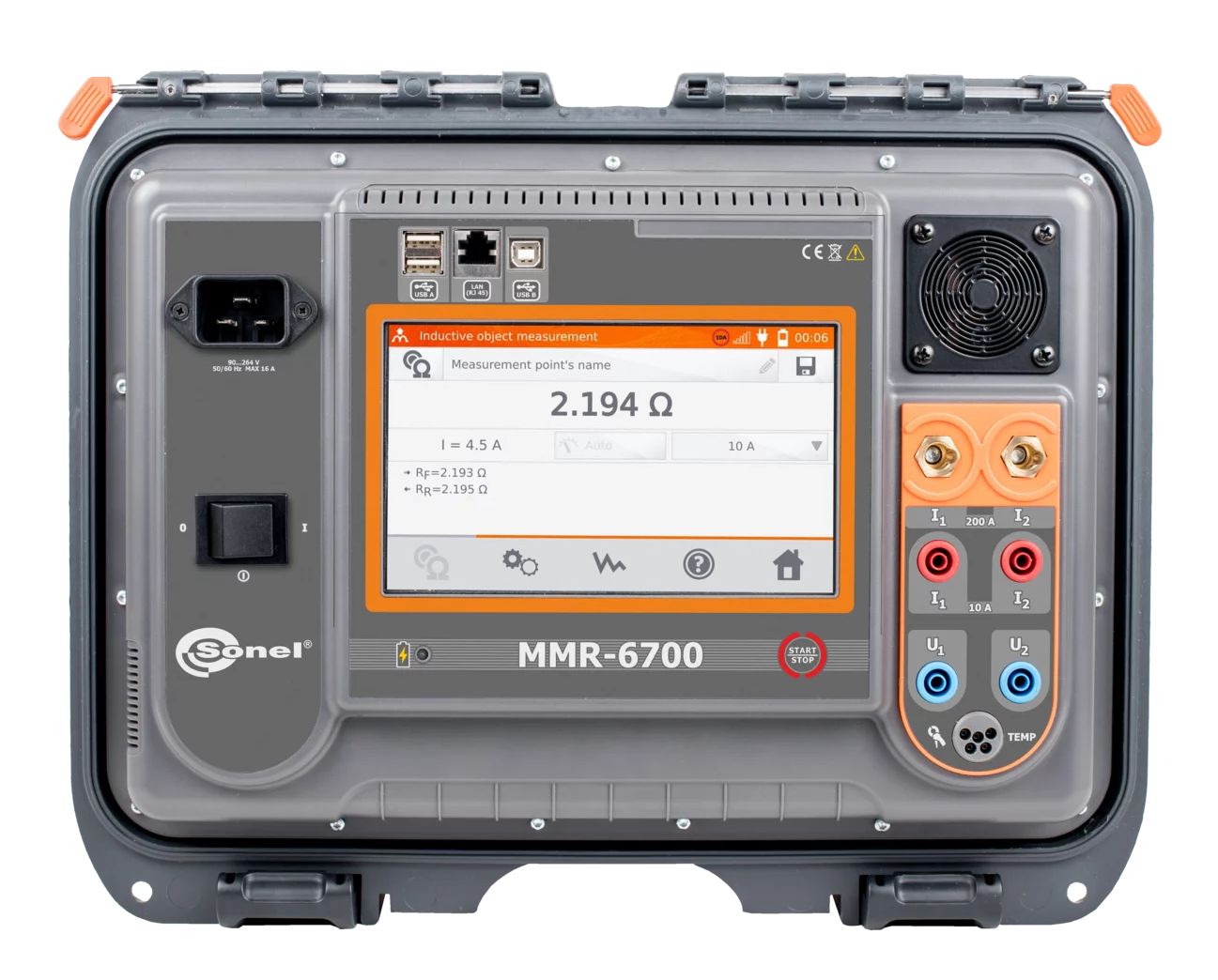

SONEL_ LOW RESISTANCE METER

Introduction:

The SONEL MMR series is a versatile, multifunctional low-resistance micro-ohmmeter designed as a single solution for testing HV circuit breakers, transformers and other low-resistance or inductive objects. Its state-of-the-art design combines high measurement current, advanced measurement algorithms and a stabilized, non-pulsating test current to deliver reliable and accurate results, even under demanding field conditions. The MMR series supports measurement currents up to 200 A for resistive objects and up to 10 A for inductive objects. With its high-power current source and measurement accuracy of up to 0.25%, it is particularly suitable for measuring HV switch contacts and other critical electrical connections. The instrument can also perform measurements on objects earthed at both ends, such as the main contacts of HV switches, and supports one-way or two-way current flow. Its high immunity to external electromagnetic interference enables reliable operation in environments with interference levels associated with systems up to 400 kV.

Key Features:

• Measurement of resistive objects with test currents up to 100/200 A
• Measurement of inductive objects with currents up to 10 A
• Measurement of objects earthed on both sides, including HV switch main contacts
• One-way or two-way measurement current.
• High immunity to external electromagnetic interference
• Measurement accuracy of up to 0.25%
• High-power, stabilized, non-pulsating measurement current
• Winding temperature measurement
• Automatic temperature compensation of the measured object
• 5-inch colour touchscreen with 800 × 480 pixel resolution
• Intuitive on-screen diagrams and measurement guidance
• Expanded internal memory for storing measurement results
• Support for printer and 2D barcode reader
• Wi-Fi, USB and LAN communication interfaces
• With its combination of high-current capability, advanced measurement functions, temperature compensation, strong interference immunity and modern communication interfaces, the SONEL MMR series provides a comprehensive solution for accurate low-resistance measurements during testing and maintenance of high-voltage electrical equipment.
• Measurement Range – Resistive Objects: 0.0–1999.9 μΩ, accuracy ±0.25%
• Measurement Range – Inductive Objects: 0.0–1999.9 μΩ, accuracy ±0.25%
• Power Supply: For measurements up to 10 A: Li-Ion battery, 7.2 V, 8.8 Ah & For measurements above 10 A (100 A or 200 A): AC mains supply required.
• Measurement Time: Resistance mode with bidirectional current flow: 7–15s & Inductive mode: ≥10s, depending on the resistance and inductance of the tested object.
• Communication Interfaces: USB, LAN, and Wi-Fi

Available Models: MMR-620, MMR-640, MMR-650, MMR-6500, MMR-6700
