SONEL_ LV INSTALLATION SAFETY TEST KIT

 Introduction:

The Sonel MPI Series is a multifunctional installation tester designed for comprehensive testing of residential and industrial electrical installations, combining multiple measurement and diagnostic functions in a single universal device. It enables users to assess installation safety, measure earthing and electric-shock protection parameters and perform fast fault-loop impedance measurements in RCD-protected networks without triggering the RCD. The instrument features an integrated three-phase power quality recorder with real-time network parameter monitoring and measurements in accordance with Class S of EN 61000-4-30, along with an energy cost calculator for evaluating potential savings.

Its large 7-inch, 800 × 480 pixel colour TFT touchscreen provides clear access to measurements and waveforms, while the included stylus allows convenient operation even when wearing dielectric gloves. Built-in help screens with measurement diagrams guide users through the correct connections for different tests. For efficient data management, the MPI Series supports USB, SD card, Bluetooth and Wi-Fi connectivity and works with dedicated software including Sonel Reports PLUS for professional measurement reports, Sonel Reader for viewing and printing measurement data and Sonel Analysis for detailed power quality analysis. Overall, the Sonel MPI Series offers a complete, efficient and convenient solution for electrical installation testing, power quality diagnostics and professional measurement documentation.

Available Features:

• PE Correctness Checking – Verification of protective earth (PE) conductor correctness and connection.
• Earth Fault Loop Impedance – Measurement of L-L, L-N and L-PE loop impedance, with and without RCD protection.
• Voltage Drop Testing – Measurement and verification of voltage drops across electrical circuits.
• RCD Testing – Measurement of RCD tripping current and tripping time, with an automatic RCD test facility.
• Insulation Resistance Testing – Assessment of insulation integrity and electrical safety.
• Continuity Testing – Verification of conductor and protective conductor continuity.
• Low Resistance Testing – Accurate measurement of low resistance connections and conductors.
• Phase Sequence Testing – Identification and verification of correct phase sequence in three-phase systems.
• Motor Direction/Rotation Testing – Verification of motor rotation and phase rotation direction.
• Earth Resistance & Soil Resistivity – Measurement of earthing system resistance and soil resistivity.
• LUX Measurement – Measurement of illumination levels for lighting assessment.
• Power Quality Analysis – Monitoring and analysis of key electrical network and power quality parameters.
• Energy Cost Calculator – Estimation of energy consumption costs and potential savings.

Key Features:

• (a) 7-inch touch screen colour display
• (b) In-Built Three phase Power quality analyser in accordance with the Class-S of EN-61000-4-30.
• ( c) Voltage L1, L2, L3 - Average values in the range up to 500V.
•  (d) Currents L1, L2, L3 - Average values, current measurement in the range up to 3KA.
• (e) Measurement of frequency in the range of 40Hz – 70Hz.
• (f) Measurement of Active (P), Reactive (Q) and Apparent (S) Power.
• (g) Measurement of Power Factor (PF).
• (h) Measurement of Harmonics (Up to 40th for voltage and current).
• (i) Measurement of Total Harmonic Distortion (THD) for Current & Voltage.
• (j) Short Circuit Loop Impedance Test (ZL-L, ZL-N, ZL-PE) from 0.13Ω …….1999.9Ω according to IEC-61557.
• (k) Short Circuit Loop Impedance Test without RCD tripping (ZL-PE) from 0.50Ω …….1999.9Ω according to IEC-61557.
• (l) RCD tripping test time for general & short-time delay RCD up to 300ms with resolution of 1ms.
• (m) RCD tripping test time for selective RCD up to 500ms with the resolution of 1ms.
• (n) Measurement of RCD tripping current test up to 1000mA.
• (o) Earth Resistance Measurement,

1. 3-Pole Method (0.50Ω….1.99KΩ with accuracy of from (±2% m.v + 3digits)
2. 4-Pole Method (0.50Ω….1.99KΩ with accuracy of from (±2% m.v + 3digits)
3. 3-Pole + Clamp Method to measure Individual Earth pit resistance without disconnection from the grid (0.00Ω….1.99KΩ with accuracy of from (±2% m.v + 4digits)
4. 2-Clamp method (0.00Ω….99.9KΩ with accuracy of from (±10% m.v + 4digits)
5. Soil Resistivity measurement up to 0.0 Ωm....99.9KΩm

• (p) Insulation Resistance measurement with 50V, 100V, 250V, 500V & 1000V up to 9.99GΩ with the accuracy of ±3%.
• (q) Facility to measure safety mat, wall & floor resistance in accordance with IS732
• (r )Resistance of Protective conductors & equipotential bonding,

1. Measurement of resistance of Protective conductors and equipotential bonding with ±200mA current from 0.12Ω ….400Ω acc. To IEC 61557-4 with accuracy of ±2%
2. Measurement of resistance with low current from 0.0Ω …. 1999Ω with the accuracy of ±3%

• (s) Phase Sequence Indication- In the same direction (Correct), Opposite direction (In-Correct) UL-L voltage: 95V ….500V (45Hz …65Hz).
• (t) Facility for LUX measurement with 0lx…399.9 klx. With resolution 0.001lx
• (u) Safety Standard in accordance with the EN 61326-1 & EN 61326-2-2.
• (v) Memory of Measurement results- 4GB or more.
• (w) CAT IV 300V, CATIII 500V.
• (x) Instrument with rechargeable battery operated.
• (y) Interface: USB, Wi-fi & Bluetooth.
• (z) Ingress Protection: IP51.

Standard Of Compliance: ISO 9001, EN 61326-1, EN 61326-2-2, EN 61010 and IEC 61557

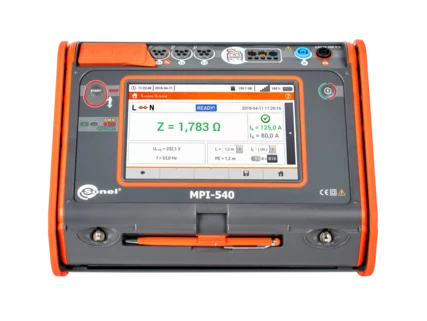

Available Models: MPI-502F, MPI-506, MPI-507, MPI-520 Start, MPI-520, MPI-535, MPI-536, MPI-540, MPI-540 PV
