IRISS_THERMO T-MAX

Introduction:

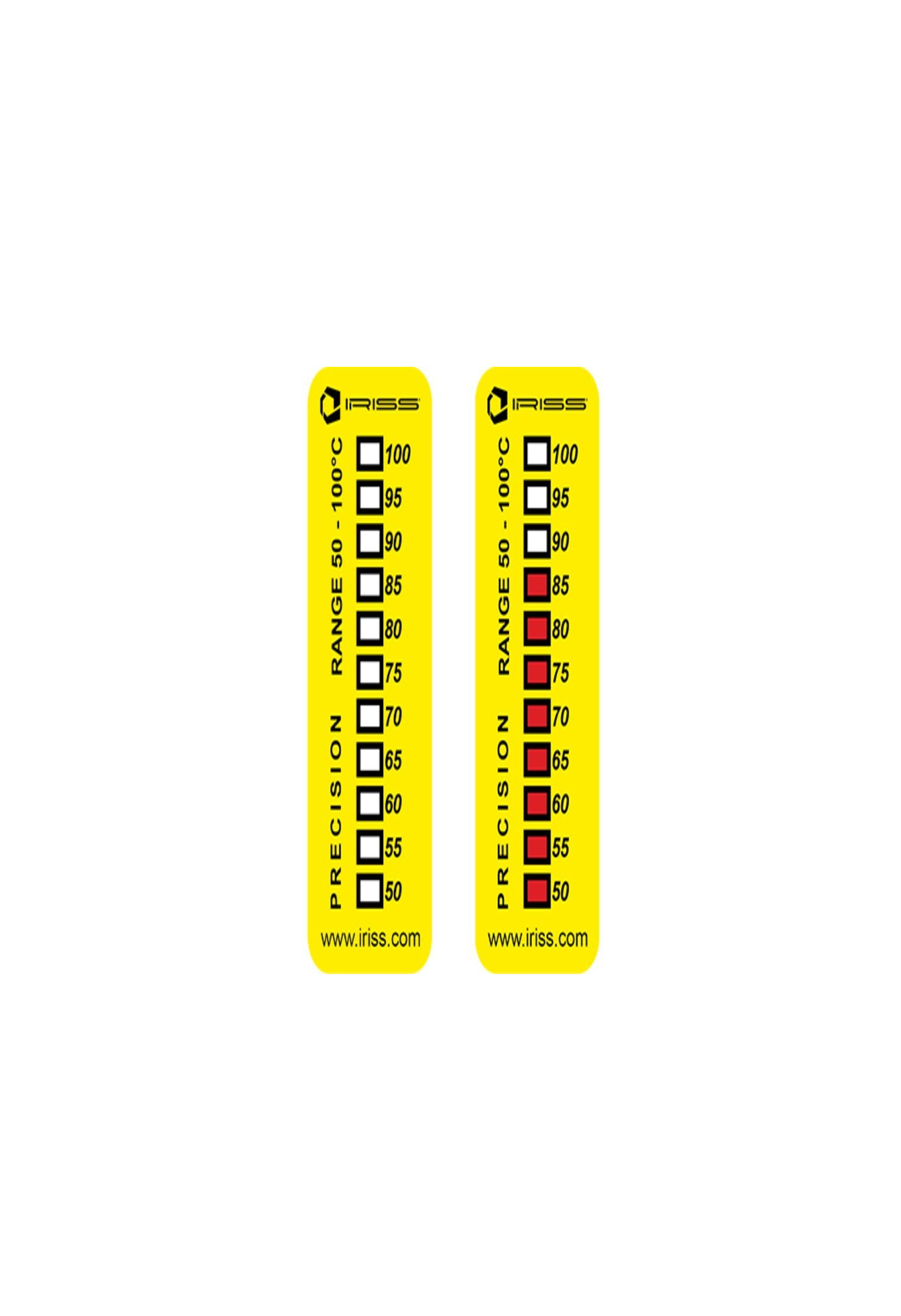

The Thermo T-Max label is a colour-changing visual temperature indicator designed to measure and record peak temperatures reached after equipment operation. Covering a range of 50°C to 100°C, the label provides clear temperature readings in 5°C increments. The Thermo T-Max label offers a simple, easy-to-read alternative to complex digital temperature-monitoring systems. Operators can apply the label and continue focusing on equipment operation while the indicator records critical temperature information for subsequent inspection and evaluation. With a temperature range of 50°C to 100°C and readings displayed in 5°C stages, the label is suitable for a variety of applications where monitoring operating temperatures is important for equipment safety, performance and maintenance. The recorded peak temperature can provide useful insight into an equipment component’s thermal behaviour and help identify potential overheating conditions.

Colour-Changing Visual Indicator:  The label features a colour-changing indicator that responds to temperature exposure within its specified range. This provides an immediate and intuitive visual indication of the temperature reached during equipment operation.

Colour-Locking Feature: Once a temperature stage is reached, the indicator locks the recorded temperature, preserving the peak-temperature reading for later assessment. This makes it particularly useful when the equipment cannot be continuously monitored during operation.

User- Friendly Design: The Thermo T-Max label offers a simple, user-friendly solution for temperature monitoring without the need for complex digital interfaces. Its straight forward visual design allows operators to monitor and record critical temperature data effortlessly, enabling them to focus on other essential aspects of equipment operation.

Wide Temperature Range and Accuracy: The Thermo T-Max label offers a temperature range of 50°C to 100°c, with clear readings in 5°c increments. It is suitable for a variety of applications where temperature monitoring is important for safety and performance. By recording peak temperature exposure, the label provides valuable insights in to equipment thermal behaviour, supporting effective maintenance, early detection of overheating and improved operational efficiency.

Installation: Peel the Thermo T-Max temperature-indicating label from the backing paper, apply it to a clean, dry surface free from dust and grease, When applying the label to a cable, preferably wrap it around the cable and overlap it onto itself to ensure secure adhesion, For indoor use only.

Caution:  These labels are intended for use on electrical equipment. Electrical safety must be assessed by a competent electrician before application. Ensure that the label is applied in a manner that does not compromise electrical insulation, equipment safety, or normal operation.

With its simplicity, visual clarity, peak-temperature recording and broad operating range, the Thermo T-Max label provides a practical solution for temperature monitoring, equipment-health assessment, preventive maintenance, and operational efficiency.

Technical Parameters:

• Adhesive Type: Acrylic
• Carrier: Polyester
• Covering Film: Polyester
• Response Time: 2–5 seconds
• Colour Change Material: Non-toxic white crystalline solid on a black absorbent backing, adhered with acrylic adhesive
• Activation Temperature: 50 °C
• Storage Conditions: Store at room temperature and humidity, i.e., 16–27 °C (60–80 °F) and 40–60% RH
• Product Life Span: 5 years
• Dimensions: 55.5mm × 21.3mm
