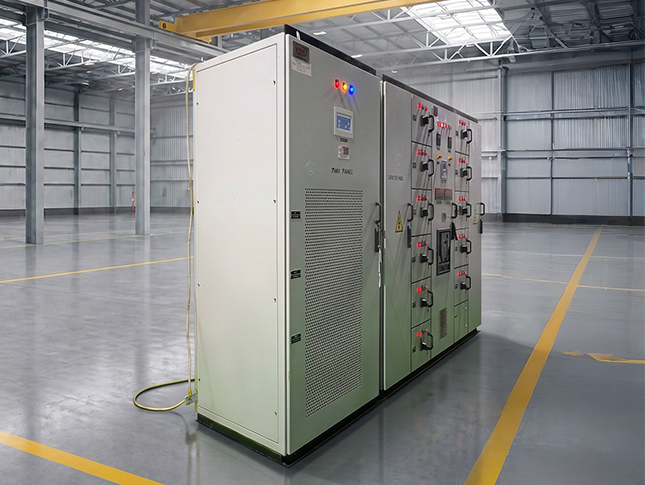

AHF panel

An Active Harmonic Filter (AHF) panel is a power quality solution that actively detects and eliminates harmonic currents generated by non-linear loads such as variable frequency drives (VFDs), UPS systems, rectifiers, switch-mode power supplies, and arc furnaces. Using IGBT-based technology with real-time DSP (Digital Signal Processing) control, the AHF continuously monitors the load current, generates an equal and opposite harmonic current, and injects it into the system to cancel out harmonics from the 2nd to the 50th order — bringing total harmonic distortion (THD) below 5% as per IEEE 519 standards. It also simultaneously compensates for reactive power and load imbalance, making it a comprehensive power quality solution in a single panel.

TECHNICAL SPECIFICATION

• Incoming supply                       = 3 Phase, 4 wire & 1 Phase 2wire
• Installation                                = Indoor & Outdoor
• Rated Operation Voltage        =  3Phase,415V ± 10% AC
• Rated Control voltage              = 230V AC/24 VDC
• Rated Service Voltage              = 500 V AC
• Rated Insulation Voltage         = 800 V
• Fault level Bus Bar                    =  50kA for 1 sec
• Rated Frequency                      =  50Hz +/- 5%
• Rated Current                           =  Up to 2500 Amp
• Combined Variation                =  ± 10%
• Dry Power Frequency

Withstand Voltage                   = 2.5KV

• Short Circuit Level                    =  50 KA
• Temperature rise                     = 40 oC above Ambient 45 oC
• Form of segregation                = Form-3b/Form-4b
• Degree of Protection               =  Up to IP 54
• Metal Sheet Thickness            =  1.6mm/2mm/3mm
• External Surface Protection   = Epoxy Powder Polymerized at High Temperature
• Painting Thickness                   = more than 60 micron
• Standard Colour                       = Grey RAL 7035
• Bus bars                                     = Aluminium / Copper
• Bus bar Supports                      = SMC / DMC / FRP
• Standard Compliance              = IS 8623, IS 13947, IEC 61439
• Standard Depth of

Switchboards                            = 400/600 mm

• Standard Feeder Width          = 400/500/600 mm
• Mounting                                  = Floor mounted
• Door                                          = Hinged Type at Front and rear.
• Cable Entry                               = top & bottom
• Name Plates                             = Aluminum Sheet (White Letters on Black Background)
• Control wiring & Colour

Code                                          = 1100V PVC insulated copper wires; 1.5 sq.mm for control  circuit        (Grey & Black); 2.5 sq.mm for CT circuit (Red, Yellow, Blue for phase & Earth Green)

• Power terminals                      =BUSBAR
• Control terminals                    = 2.5sq. mm Clip on type
• Earthing                                    =  AL Bus will be provided.
• Routine Test                            =  All routine tests as per the specification and relevant standards    will be carried out.
• SUPPLY : Bhubaneswar, odisha ,pan india , exports & import service provider
