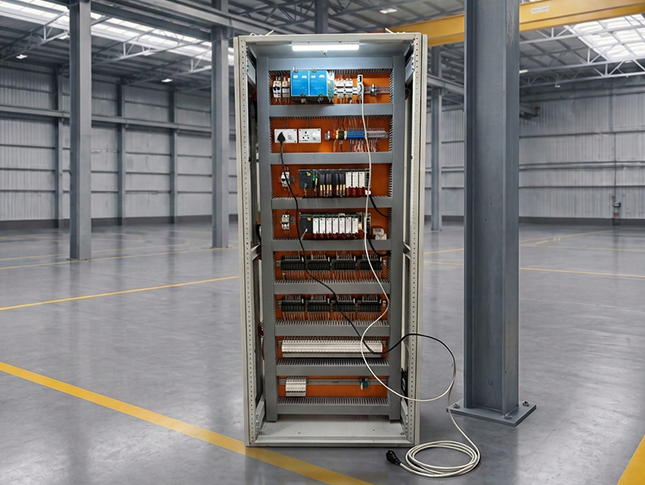

PLC Panel

A PLC (Programmable Logic Controller) Panel is an industrial control panel that houses a programmable logic controller along with associated input/output modules, power supplies, HMI displays, communication interfaces, and protective devices — all integrated within a single enclosure. It is used to automate, monitor, and control industrial processes and machinery by executing pre-programmed logic based on real-time inputs from sensors, switches, and field devices. PLC panels are widely used across manufacturing, process industries, water treatment, building automation, and infrastructure projects where precise, reliable, and repeatable automated control is essential.

TECHNICAL SPECIFICATION

• Incoming supply                       = 3 Phase, 4 wire & 1 Phase 2wire
• Installation                                = Indoor & Outdoor
• Rated Operation Voltage        =  3Phase,415V ± 10% AC
• Rated Control voltage              = 230V AC/24 VDC
• Rated Service Voltage              = 500 V AC
• Rated Insulation Voltage         = 800 V
• Fault level Bus Bar                    =  50kA for 1 sec
• Rated Frequency                      =  50Hz +/- 5%
• Rated Current                           =  Up to 2500 Amp
• Combined Variation                =  ± 10%
• Dry Power Frequency

Withstand Voltage                   = 2.5KV

• Short Circuit Level                    =  50 KA
• Temperature rise                     = 40 oC above Ambient 45 oC
• Form of segregation                = Form-3b/Form-4b
• Degree of Protection               =  Up to IP 54
• Metal Sheet Thickness            =  1.6mm/2mm/3mm
• External Surface Protection   = Epoxy Powder Polymerized at High Temperature
• Painting Thickness                   = more than 60 micron
• Standard Colour                       = Grey RAL 7035
• Bus bars                                     = Aluminium / Copper
• Bus bar Supports                      = SMC / DMC / FRP
• Standard Compliance              = IS 8623, IS 13947, IEC 61439
• Standard Depth of

Switchboards                            = 400/600 mm

• Standard Feeder Width          = 400/500/600 mm
• Mounting                                  = Floor mounted
• Door                                          = Hinged Type at Front and rear.
• Cable Entry                               = top & bottom
• Name Plates                             = Aluminum Sheet (White Letters on Black Background)
• Control wiring & Colour

Code                                          = 1100V PVC insulated copper wires; 1.5 sq.mm for control  circuit        (Grey & Black); 2.5 sq.mm for CT circuit (Red, Yellow, Blue for phase & Earth Green)

• Power terminals                      =BUSBAR
• Control terminals                    = 2.5sq. mm Clip on type
• Earthing                                    =  AL Bus will be provided.
• Routine Test                            =  All routine tests as per the specification and relevant standards    will be carried out.
• SUPPLY : Bhubaneswar, odisha ,pan india , exports & import service provider
