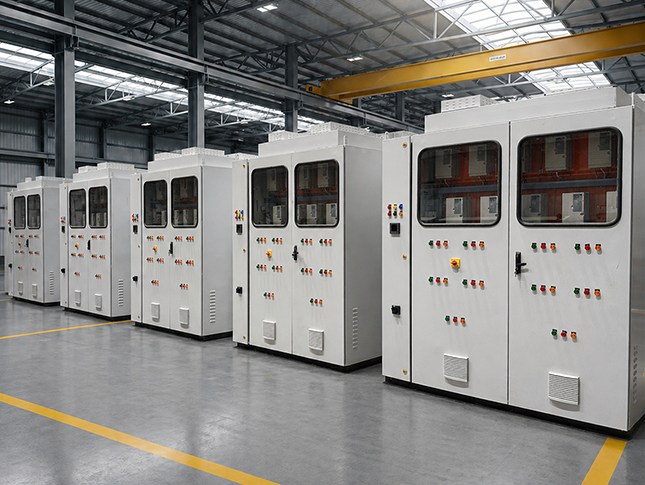

VFD Panel

A Variable Frequency Drive (VFD) Panel, also known as an AC drive or inverter panel, is an electronic power control assembly that regulates the speed, torque, and direction of an AC induction motor by varying the frequency and voltage of the power supplied to it. By allowing motors to run at the exact speed required by the load rather than at fixed full speed, VFD panels deliver significant energy savings — particularly in pump, fan, and compressor applications where energy consumption reduces dramatically at lower speeds. They also provide smooth, controlled motor starting that eliminates inrush current, reduces mechanical stress, and extends motor and equipment life significantly.

TECHNICAL SPECIFICATION

• Incoming supply                       = 3 Phase, 4 wire & 1 Phase 2wire
• Installation                                = Indoor & Outdoor
• Rated Operation Voltage        =  3Phase,415V ± 10% AC
• Rated Control voltage              = 230V AC/24 VDC
• Rated Service Voltage              = 500 V AC
• Rated Insulation Voltage         = 800 V
• Fault level Bus Bar                    =  50kA for 1 sec
• Rated Frequency                      =  50Hz +/- 5%
• Rated Current                           =  Up to 2500 Amp
• Combined Variation                =  ± 10%
• Dry Power Frequency

Withstand Voltage                   = 2.5KV

• Short Circuit Level                    =  50 KA
• Temperature rise                     = 40 oC above Ambient 45 oC
• Form of segregation                = Form-3b/Form-4b
• Degree of Protection               =  Up to IP 54
• Metal Sheet Thickness            =  1.6mm/2mm/3mm
• External Surface Protection   = Epoxy Powder Polymerized at High Temperature
• Painting Thickness                   = more than 60 micron
• Standard Colour                       = Grey RAL 7035
• Bus bars                                     = Aluminium / Copper
• Bus bar Supports                      = SMC / DMC / FRP
• Standard Compliance              = IS 8623, IS 13947, IEC 61439
• Standard Depth of

Switchboards                            = 400/600 mm

• Standard Feeder Width          = 400/500/600 mm
• Mounting                                  = Floor mounted
• Door                                          = Hinged Type at Front and rear.
• Cable Entry                               = top & bottom
• Name Plates                             = Aluminum Sheet (White Letters on Black Background)
• Control wiring & Colour

Code                                          = 1100V PVC insulated copper wires; 1.5 sq.mm for control  circuit        (Grey & Black); 2.5 sq.mm for CT circuit (Red, Yellow, Blue for phase & Earth Green)

• Power terminals                      =BUSBAR
• Control terminals                    = 2.5sq. mm Clip on type
• Earthing                                    =  AL Bus will be provided.
• Routine Test                            =  All routine tests as per the specification and relevant standards    will be carried out.
• SUPPLY : Bhubaneswar, odisha ,pan india , exports & import service provider
