PORTABLE APPLIANCE TESTER

Introduction:

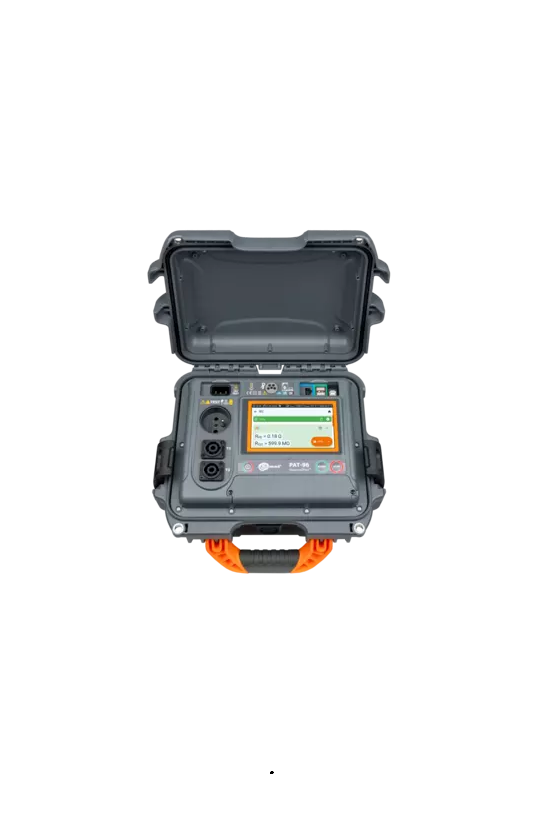

The Sonel PAT-96 is an advanced electrical safety meter designed for comprehensive testing of welding machines and a wide range of electrical equipment, including power tools, three-phase appliances, and domestic devices. It is particularly suited for applications where electrical safety is critical and is specifically designed for testing welding equipment in accordance with the EN 60974-4 standard. The instrument enables reliable measurement of parameters that directly affect the safe operation of equipment, including protective conductor resistance, insulation resistance, continuity of connections, substitute, differential and touch leakage currents, functional performance, power, and RCD/PRCD operation. For welding equipment, the PAT-96 can measure rated voltage under no-load conditions, welding circuit leakage current, and primary leakage current, providing a comprehensive assessment of equipment safety.

The PAT-96 features a wide power supply range of 95–265 V and supports the testing of equipment supplied at 110 V and 230 V, 50/60 Hz. Its built-in measurement procedure wizard and intuitive user interface make testing fast, efficient, and straightforward, while the integrated help system assists users during measurements. The instrument also supports automated test procedures, providing greater flexibility and consistency when carrying out repetitive inspections. For efficient asset management and recordkeeping, the PAT-96 can work with an optional label printer and QR code scanner. It can generate initial measurement reports and QR-code labels containing unique device identification data, which can subsequently be scanned and stored in the instrument's memory. The meter's memory uses a convenient tree structure consisting of folders, objects, and individual devices, allowing each tested device to be associated with its description, measurement location, customer information, and registration number. All of this is housed in a compact and durable enclosure that provides reliable protection during both measurement activities and transportation, making the Sonel PAT-96 a practical and dependable solution for professional electrical equipment safety inspections.

Technical Specification:

• Protective Conductor (PE) Resistance: Up to 19.99 Ω at test currents of 200 mA, 10 A, and 25 A
• Insulation Resistance: Up to 599.9 MΩ at test voltages of 100 V, 250 V, 500 V, and 1000 V
• Current (Clamp Measurement): Up to 24.9 A
• Active Power (P): Up to 3.99 kW
• Reactive Power (Q): Up to 3.99 kvar
• Apparent Power (S): Up to 3.99 kVA
• Power Factor (PF): Up to 1.00
• Current Consumption for Power Measurement: Up to 15.99 A
• Total Harmonic Distortion (THD): Up to 999.9% for voltage and current
• Cos φ: Up to 1.0
• RMS Voltage (URMS): Up to 170.0 V
• DC and AC Peak Voltage: Up to 240.0 V
• Open-Circuit Voltage (U0): Up to 240.0 V
• Welding Circuit Leakage Current (IL): Up to 14.99 mA
• Welding Machine Primary-Circuit Leakage Current (IP): Up to 14.99 mA
• PE Leakage and Differential Leakage Current: Up to 19.9 mA
• Substitute Leakage Current: Up to 19.9 mA
• Touch Leakage Current: Up to 4.999 mA
• RCD Parameter Measurement: Up to 300 ms, in accordance with IEC 61557
• RCD Tripping Current (IA): Up to 30 mA for sinusoidal residual current (AC type)
• Voltage: Up to 265.0 V
• Frequency: Up to 65.0 Hz
• Display: 5-inch LCD, 1280 × 720 pixels
• Mains Power Supply: 95–265 V AC, 45–70 Hz
• Rechargeable Battery: Ni-MH, 7.2 V / 2 Ah
• Maximum Load Current: 16 A at 230 V
• Measurement Memory: Up to 9,999 measurement results

Standard Of Compliance:

The instrument can be used for testing electrical equipment in accordance with a wide range of applicable standards, including EN 50699, EN 50678, EN 60974-4, VDE 0701-0702, VDE 0404-1, VDE 0404-2, EN 60745-1, EN 62841, EN 60335-1, EN 60950, EN IEC 62368-1 and AS/NZS 3760.

Available Models: PAT-2, PAT-2E, PAT-10, PAT-95, PAT-96
