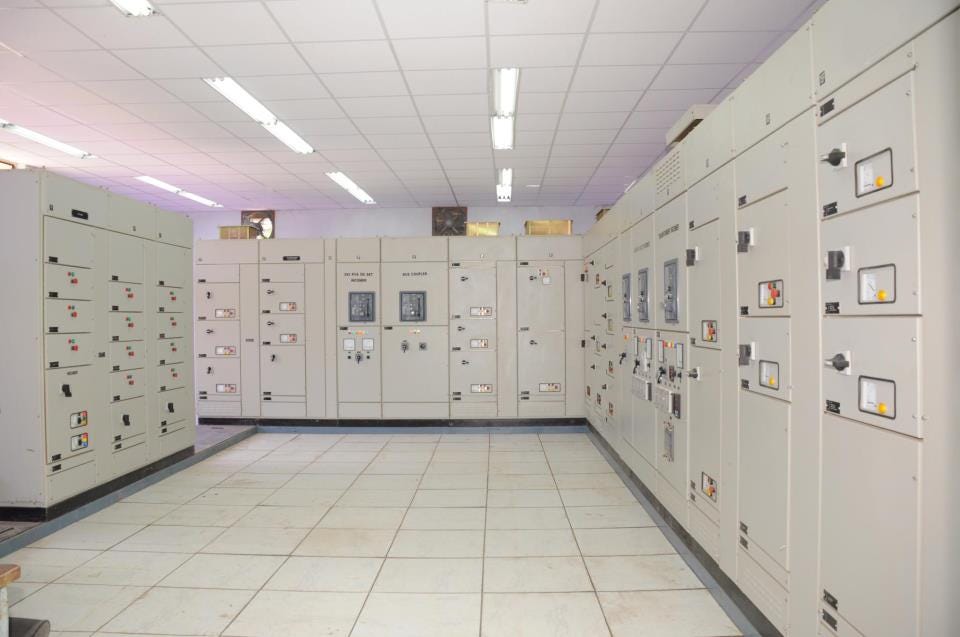

MDB Panel

A Main Distribution Board (MDB) panel is a secondary-level electrical distribution assembly that receives power from a main switchboard or PCC panel and distributes it to various sub-circuits, lighting loads, small motors, and utility feeders within a facility. It houses MCBs, MCCBs, and other protective devices organized in a compact enclosure, ensuring safe and reliable distribution of electrical power to end-use equipment. PDB panels are commonly used in industrial plants, commercial buildings, and infrastructure projects where power needs to be channelled efficiently from a central source to multiple points of consumption.

TECHNICAL SPECIFICATION

• Incoming supply                       = 3 Phase, 4 wire & 1 Phase 2wire
• Installation                                = Indoor & Outdoor
• Rated Operation Voltage        =  3Phase,415V ± 10% AC
• Rated Control voltage              = 230V AC/24 VDC
• Rated Service Voltage              = 500 V AC
• Rated Insulation Voltage         = 800 V
• Fault level Bus Bar                    =  50kA for 1 sec
• Rated Frequency                      =  50Hz +/- 5%
• Rated Current                           =  Up to 2500 Amp
• Combined Variation                =  ± 10%
• Dry Power Frequency

Withstand Voltage                   = 2.5KV

• Short Circuit Level                    =  50 KA
• Temperature rise                     = 40 oC above Ambient 45 oC
• Form of segregation                = Form-3b/Form-4b
• Degree of Protection               =  Up to IP 54
• Metal Sheet Thickness            =  1.6mm/2mm/3mm
• External Surface Protection   = Epoxy Powder Polymerized at High Temperature
• Painting Thickness                   = more than 60 micron
• Standard Colour                       = Grey RAL 7035
• Bus bars                                     = Aluminium / Copper
• Bus bar Supports                      = SMC / DMC / FRP
• Standard Compliance              = IS 8623, IS 13947, IEC 61439
• Standard Depth of

Switchboards                            = 400/600 mm

• Standard Feeder Width          = 400/500/600 mm
• Mounting                                  = Floor mounted
• Door                                          = Hinged Type at Front and rear.
• Cable Entry                               = top & bottom
• Name Plates                             = Aluminum Sheet (White Letters on Black Background)
• Control wiring & Colour

Code                                          = 1100V PVC insulated copper wires; 1.5 sq.mm for control  circuit        (Grey & Black); 2.5 sq.mm for CT circuit (Red, Yellow, Blue for phase & Earth Green)

• Power terminals                      =BUSBAR
• Control terminals                    = 2.5sq. mm Clip on type
• Earthing                                    =  AL Bus will be provided.
• Routine Test                            =  All routine tests as per the specification and relevant standards    will be carried out.
