LEAKAGE CURRENT ALARM DEVICE

Introduction:

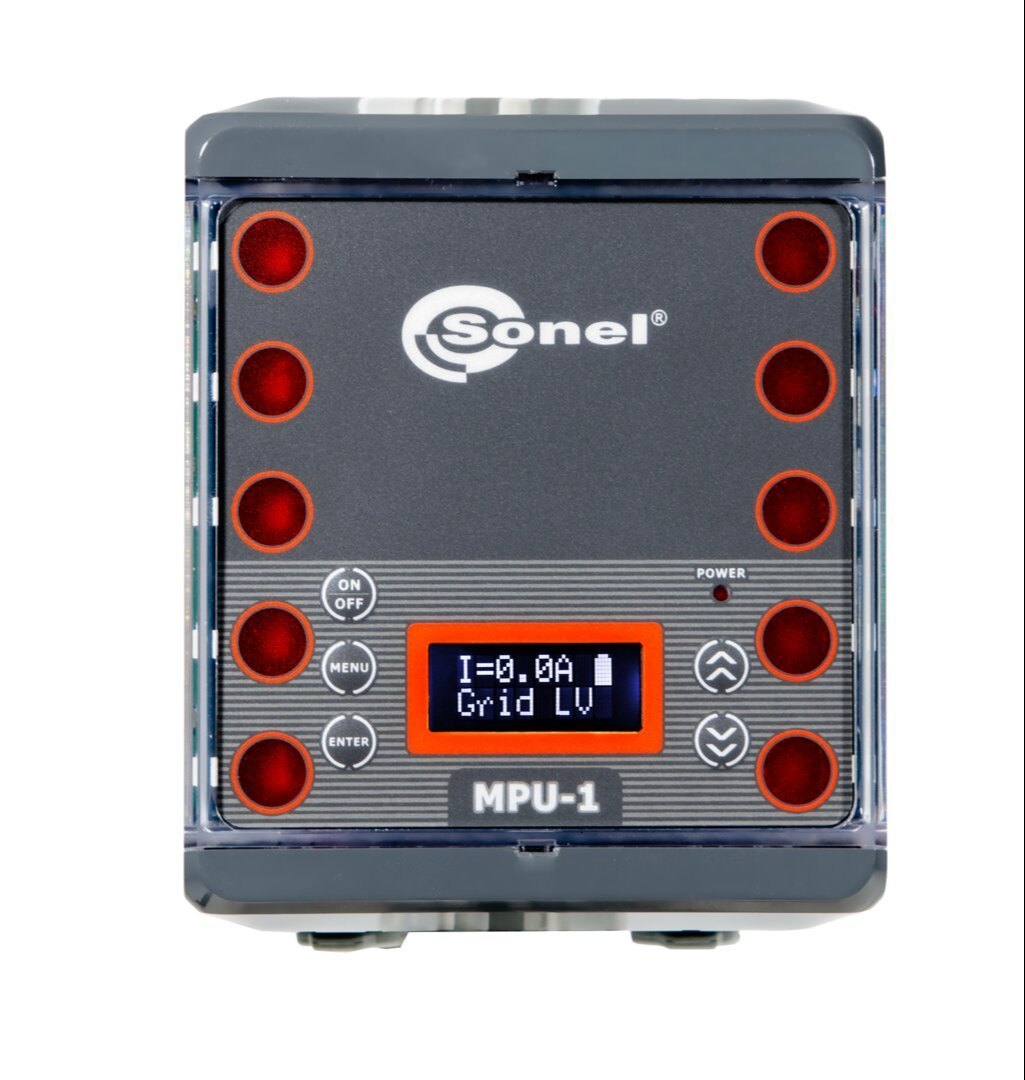

The Sonel MPU-1 leakage current alarm device is designed for continuous monitoring and measurement of leakage current in AC low- and medium-voltage power networks. It enables users to assess the safety status of a monitored electrical installation based on the level of leakage current flowing through the system.

The MPU-1 allows the user to set a safe leakage-current threshold. When the measured current exceeds the pre-set alarm level, the instrument activates both visual and audible alarms, providing immediate indication of a potentially unsafe condition.

Key Features:

• Continuous monitoring of alternating current flowing through earthing/grounding conductors.
• Measurement using one or two current clamps simultaneously. When two clamps are used, their measured current values are summed, allowing measurement of split poles using independent clamps for each conductor.
• Visual indication of the operating mode via diode indicators.
• Visual and audible alarm when the measured leakage current exceeds the pre-set threshold. The factory-set alarm threshold is 1 A.
• Rogowski-coil measurements using the flexible Sonel F-series coil, with a maximum coil length of 2 m.
• Suitable for measurements in low- and medium-voltage AC networks operating at 50 Hz or 60 Hz.
• Automatic measurement-range selection for convenient operation.
• Battery-level monitoring to help ensure reliable operation.
• Ergonomic design and easy operation for practical use in electrical installations.

The Sonel MPU-1 provides a reliable solution for continuous leakage-current monitoring, helping users identify excessive current flow and assess the electrical safety of low- and medium-voltage installations.

Technical Parameters:

Measurement Range: 0.1A to 299A

Alarm threshold setting range: 0.5…9.9 A

Power supply: Rechargeable battery pack SONEL NiMH 9.4 V 2.1 Ah

Parameters of battery charger power adapter: 100…240 V / 50…60 Hz

Operating time for standby mode: >18 h

Operating time for alarm mode: >3 h

Dimensions 125 x 150 x 95 mm

Available Model: MPU-1
