TONG TESTER

Introduction:

The Sonel CMP series Clamp Meter is a robust, versatile and reliable instrument designed for electrical and power engineering professionals, including installers, electricians, fitters and service technicians. Its innovative clamp design enables efficient and accurate measurements in narrow and hard-to-reach areas, making it particularly well suited for demanding working environments.

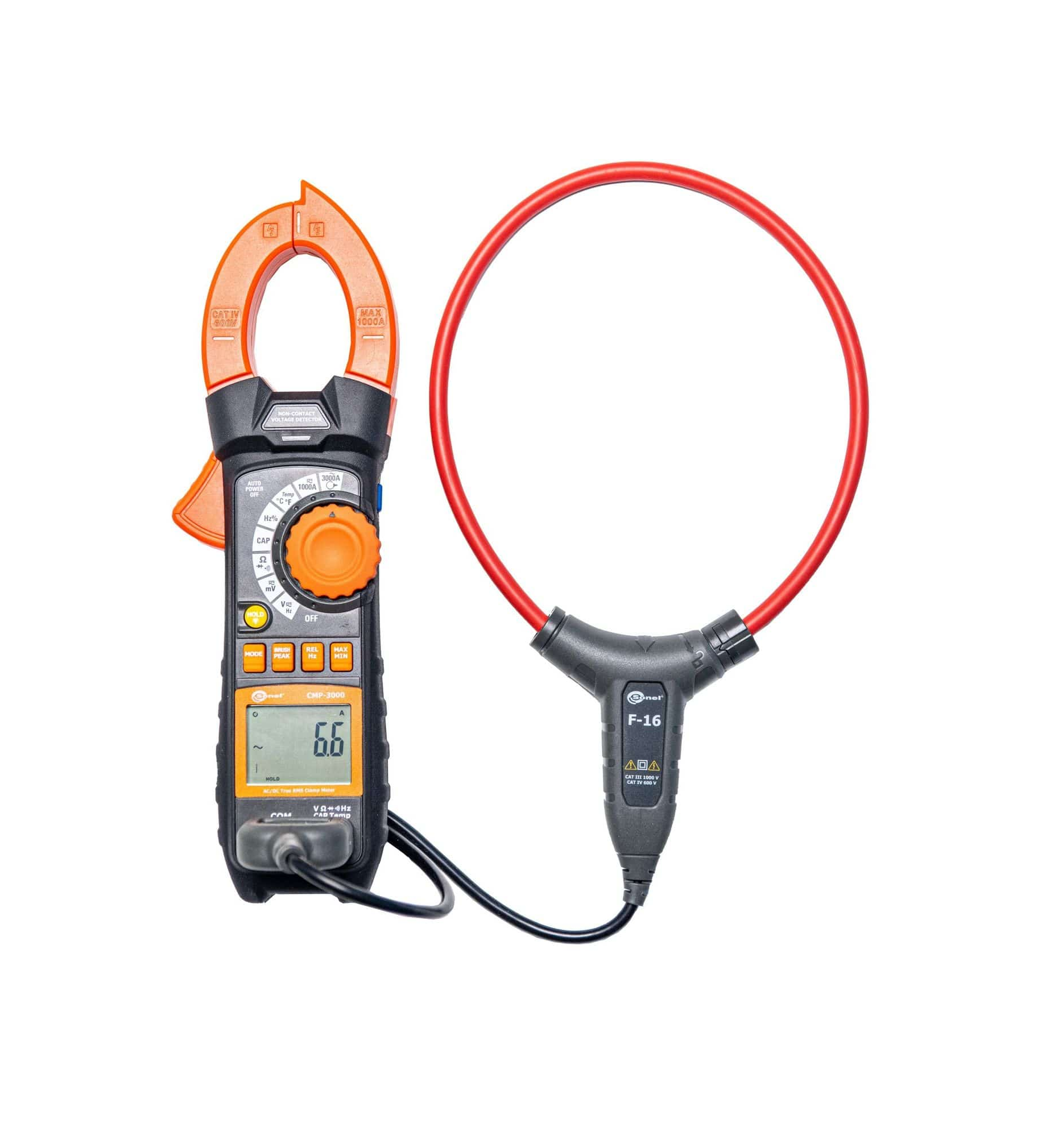

The CMP features durable clamps designed to accommodate power busbars and conductors up to 160 mm in diameter, while enabling AC current measurements of up to 3000 A. Its innovative jaw design provides easier access in confined spaces, allowing measurements to be performed quickly and conveniently. A distinctive feature of the CMP-3000 is the non-contact voltage detector integrated into the upper section of the clamp jaws. This makes voltage detection possible even where access is severely limited. Simply bring the detector close to the cable or conductor; when voltage is detected, an LED indicator on the instrument illuminates. The meter is equipped with a clear, backlit display, ensuring easy reading of measurement results even in low-light conditions. A built-in flashlight further improves visibility when working in dark or poorly illuminated areas.

In addition to essential measurement functions, the CMP offers a range of advanced features, including:

• INRUSH – inrush current measurement
• MAX/MIN – maximum and minimum value recording
• REL – relative measurement
• PEAK – peak value measurement
• Bluetooth connectivity for wireless data transfer

The meter's IP40-rated housing and durable rubberized casing provide reliable protection against everyday mechanical damage and help ensure long-term durability in demanding working conditions.

Thanks to Bluetooth connectivity, measurement results can be transferred in real time to the Sonel Multimeter Mobile application. The app allows users to record and store measurements, add descriptions and photographs, and share measurement data conveniently as email attachments.

Combining high current measurement capability, advanced measurement functions, non-contact voltage detection, built-in illumination, and wireless connectivity in a compact and durable design, the Sonel CMP-3000 is a practical solution for professionals working in electrical installations, power engineering, maintenance, and service applications.

Technical Parameters:

Ac current: Built-in Clamp- 1000A, Flexible Clamp- 3000A

DC current: 1000A

AC voltage: 1000V

DC Voltage: 1000V

Resistance: up to 50.000 MΩ

Frequency: up to 10.000 MHz

Capacitance: up to 5000.0 μF

Duty Cycle: 5.0…95.0%

Temperature measurement: -100.0…+1000ºC

Counting:  50.000 digits

Display: segment-based LCD, 5 digits

Available Models: CMP-100, CMP-200, CMP-200F, CMP-402, CMP-403 CMP-1010, CMP-1015-PV, CMP-1015 PV-Pro, CMP-2000, CMP-3KR, CMP-3000
